NCR pads, A5
Artwork information NCR pads, A5

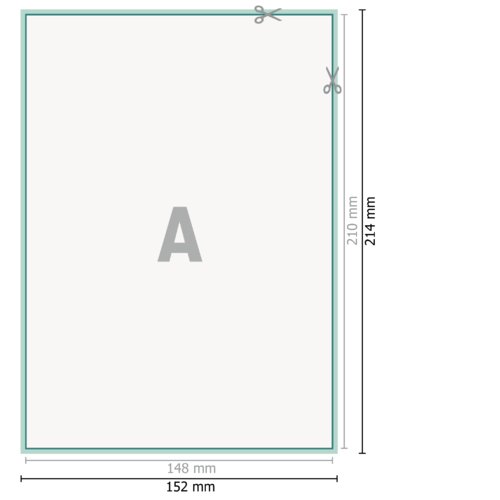

Data format (incl. 2.00 mm bleed): 15.20 x 21.40 cm
Trimmed size: 14.80 x 21.00 cm
Resolution at least 300 dpi for an original image size of.
Include a surrounding trim of 2 mm, important information should be at least 4 mm from the edge of the final format size
Fonts must be completely imbedded or converted to curves.
colour mode CMYK as with FOGRA52 (PSO Uncoated v3 FOGRA52)
Maximum colour application of 300%
We will not check for spelling and/or typographical errors.
We will not check for overprint settings.
Transparencies created with CorelDRAW must be reduced.
Comments will be deleted and not printed.
Form field content will be printed.
Single-sided colour print (4/0) back blank

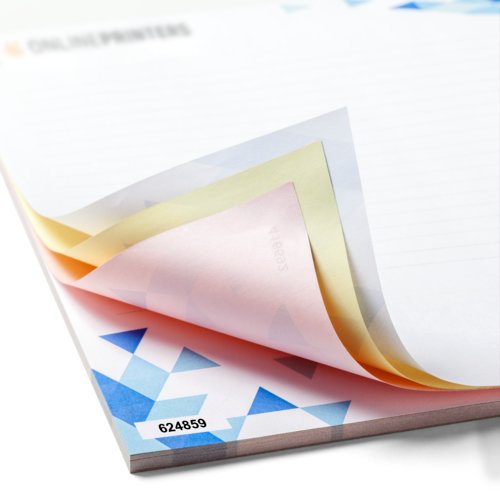

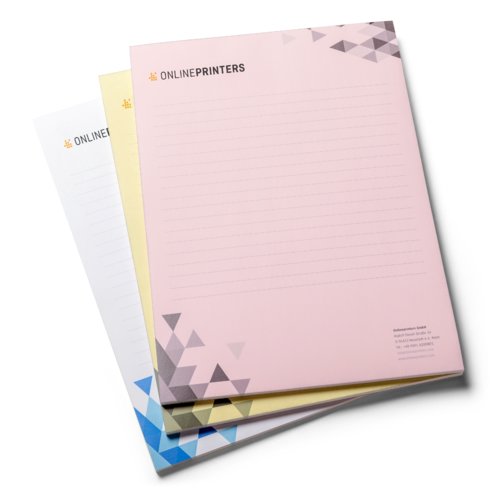

Lower sheet(s) available in yellow or pink
2 or 3 lower sheets as desired
Top sheet: 4/0 coloured (front side CMYK/black) lower sheet(s): 1/0 coloured (single-sided print black)
Paper quality varies between the common paper weight of 60 gsm and up to 90 gsm.
Adhesive binding according to text direction
Punched holes according to text direction
Only one numbering is possible per set of non-carbon copy paper.
Consecutive numbering on one side (one number per set, respectively)
Numbering format: six-digit number, no letters or special characters
Orientation: horizontal or vertical
Size of numbering field. min. 24 x 6 mm
Distance to edge: min. 5 mm
Font size of numbering: 12 pt
Font colour: black
In addition to your artwork files, please upload a view file to illustrate the numbering positions (example: "view_only_.pdf").
