Auto bottom boxes
Artwork information Auto bottom boxes
- free format selection
- Special requirements for creating the artwork:

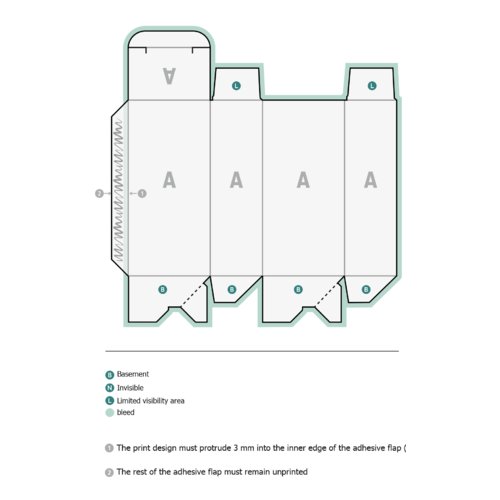

- The print design must protrude 3 mm into the inner edge of the adhesive flap (overfill); the rest of the adhesive flap must remain unprinted.
- black elements must be created with 100 % black only (e.g. barcodes such as EAN, QR-codes, text etc.)
- Include a surrounding trim of 3 mm, important information should be at least 4 mm from the edge of the final format size
- Resolution: 300 dpi
- Fonts must be completely imbedded or converted to curves
- colour mode: CMYK, FOGRA51 (PSO coated v3) for coated paper, FOGRA52 (PSO uncoated v3 FOGRA52) for uncoated paper
- Maximum colour application of 300 %
- We will not check for spelling and/or typographical errors
- We will not check for overprint settings
- Transparencies created with CorelDRAW must be reduced
- Comments will be deleted and not printed
- Form field content will be printed
Print templates
Product details
- Four-colour print on the front, reverse blank (4/0)

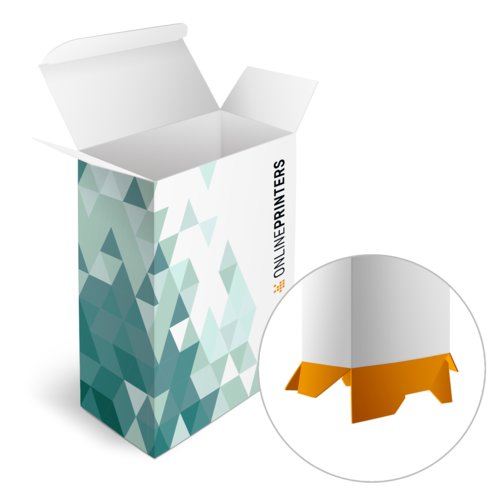

- boxes with tuck flaps on the lid and a sturdy auto bottom
- The bottom flaps automatically interlock to form a sturdy bottom when setting up the boxes.
- ideal for heavy products such as bottles, flacons, cosmetic products or metal ware thanks to sturdy bottom
- assembled by hand more quickly than other folding boxes
- standard: ECMA A6020 / A60.20.00.01
- ideal to manually package heavy products
- easy to stack and therefore ideal for transport and presentation
- The top tuck flap has one tuck flap and two dust flaps.
- all-over printed as information and/or advertising space
- glued: dots on the long side of the body and on the bottom flaps
- delivery: glued and flat
- Please observe the data sheet.
