Hinged lid boxes with hook, Free format selection
Free templates:
see "Details"
- Description
- Details
- Data info
Single-sided colour print (4/0) back blank

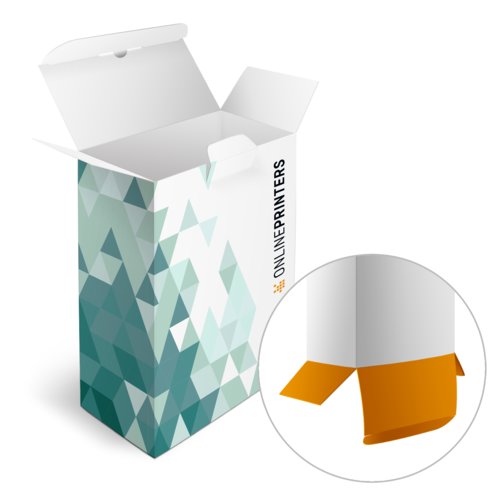

boxes with offset flaps and hook on the lid for secure closure
Each flap has one tuck flap and two dust flaps.
To close, first fold in the two dust flaps, next the tuck flaps; afterwards insert the hook into the slot of the upper tuck flap.
The body is assembled using the adhesive flap on the long site.
front opening, easy to open and close again
easy to stack and therefore ideal for transport and presentation
Packaging can be printed all over as information and/or advertising space.
glued: dots along the long seam of the body
delivery: glued and flat
Resolution at least 300 dpi for an original image size of.
Include a surrounding trim of 3 mm, important information should be at least 4 mm from the edge of the final format size
Maximum colour application of 300%
Fonts must be completely imbedded or converted to curves.
colour mode CMYK, FOGRA51 (PSO coated v3) for coated paper, FOGRA52 (PSO uncoated v3 FOGRA52) for uncoated paper

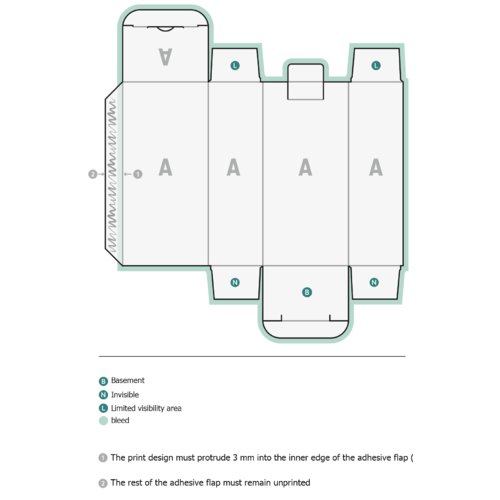

The print design must protrude 3 mm into the inner edge of the adhesive flap (overfill); the rest of the adhesive flap must remain unprinted.
Black elements must be created with 100 % black only (e.g. barcodes such as EAN, QR-codes, text etc.)
We will not check for spelling and/or typographical errors.
We will not check for overprint settings.
Transparencies created with CorelDRAW must be reduced.
Comments will be deleted and not printed.
Form field content will be printed.
Here you can download the template for your product. With the information in the template you can customise your printing file correctly. Please do not scale the size of graphics because the sizes are binding. You can use the inscribed measurement for check-up. The final printing files cannot contain any outlines or folding lines, because you do not want them to be printed. So please create an extra file for outlines and all the information we need to know.
| File name | Application | File size | |
|---|---|---|---|
Please note: Despite taking great care, we cannot assume any liability for the correctness and completeness of the provided templates. If you spot any errors, please let us know using the contact form.
Illustration data formats:
| Platform independent data format, preferred for print data transfer. Display with Adobe Reader | ||
| AI | Adobe Illustrator, vector-based design program. Can be imported into many layout programs | |
| PSD | Adobe Photoshop, program for professional image editing | |
| INX | Adobe InDesign up to CS3, earlier version of the page layout programs | |
| INDD | Adobe InDesign (current version), page layout program for creating professional print templates | |
| IDML | Adobe InDesign, open interchange format for the page layout program starting at CS4 | |
| ZIP, RAR | Format for compressing data and compressed collection of multiple data | |
| CDR | Corel Draw, vector-based graphic program | |
| EPS | Vector-based data format. Can be imported into many layout programs |

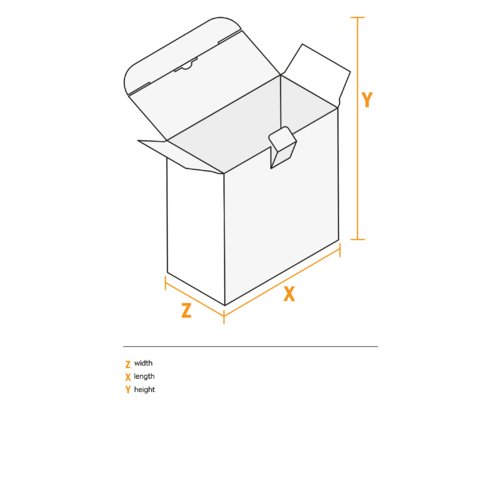

You can customise the packaging dimensions. Please enter the following measures:
- length (min 5,00 cm / max 25,00 cm)
- width (min 3,00 cm / max 23,00 cm)
- height (min 7,00 cm / max 25,00 cm)
When entering your values, please note that the entered dimensions refer to the internal measures of the packaging. The maximum possible values of length, width and height cannot always be combined.
