Artwork information Cardboard Cups, 300 ml

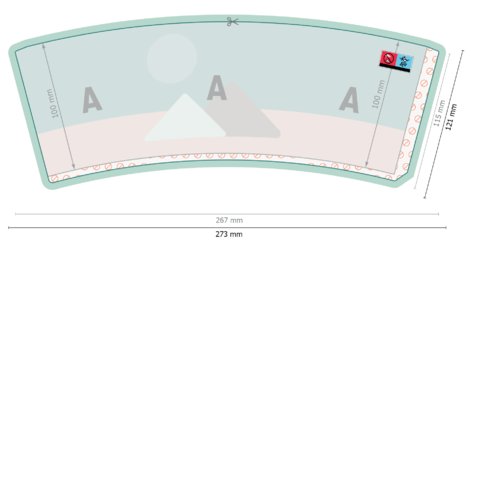

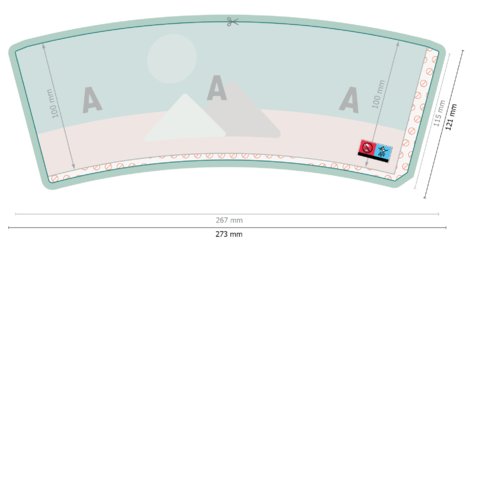

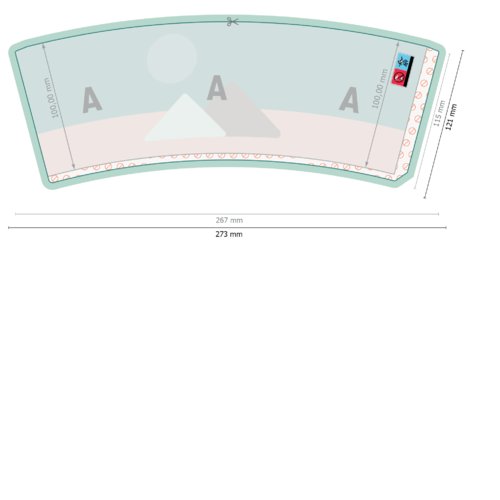

- Data format (incl. 3 mm bleed): 27,3 x 12,1 cm
- Trimmed size: 26,7 x 11,5 cm
- Resolution: 300 dpi
- Include a surrounding trim of 3 mm, important information should be at least 4 mm from the edge of the final format size
- Special requirements for creating the artwork:
- Marking specifications: Please insert the word mark/figurative mark "PLASTIC IN PRODUCT" in your artwork. It is available for download in the "More templates" section on the right
- Important: Please observe the statutory marking specifications (Annex IV, Item 3)
- Minimum size of the imprint: 1.4 cm x 2.8 cm
- Position: on the outside of the cup with distance to the lower edge
- Do not rotate the label (landscape)
- please bend your text/graphics along the curves
- Black design elements: Please create as monochrome black (C0 M0 Y0 K100) to avoid register inaccuracies (if necessary, use C60 M0 Y0 K100 for jet black)
- name the layers containing your design "ARTWORK"
- please note these cutting line-specific features:
- define a spot colour titled “Keyline” in 100 % Magenta
- must be set to Overprint
- is provided for reference only and will not be printed
- a contour template can be found in the InDesign file under Download templates
- Marking specifications: Please insert the word mark/figurative mark "PLASTIC IN PRODUCT" in your artwork. It is available for download in the "More templates" section on the right
- Fonts must be completely imbedded or converted to curves
- colour mode: CMYK, FOGRA51 (PSO coated v3) for coated paper
- We will not check for spelling and/or typographical errors
- We will not check for overprint settings
- Comments will be deleted and not printed
- Form field content will be printed
Product details

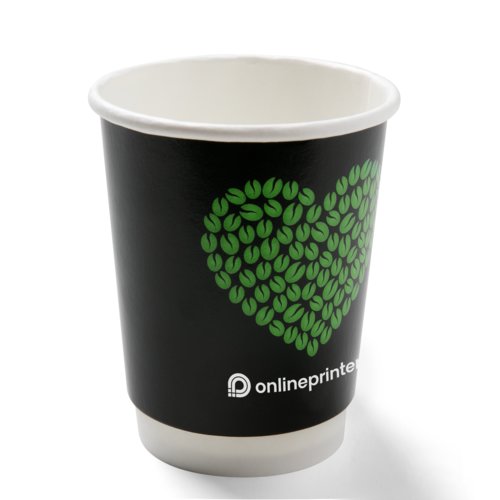

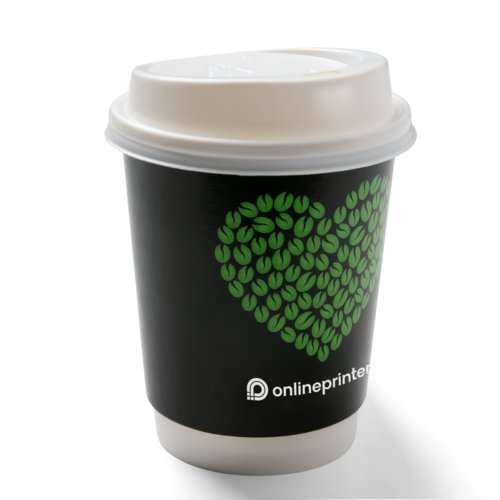

- four-colour print on the outside, inside unprinted (4/0)
- disposable cardboard cups with a sturdy double wall
- ideal to enjoy cold or hot beverages"to go"
- capacity: approx. 300 to 330 ml
- cup diameter: top: 90 mm; bottom: 60 mm
- cup height: 110 mm
- packaging unit: 25 pieces in a polyester bag
- food-safe, odourless and tasteless
- Marking specifications: Cups containing plastic and distributed in the EU must be printed with the combined word/figurative mark “PLASTIC IN PRODUCT”
- Please note that the colours as shown on the screen can deviate from the actual product colours due to the light conditions or monitor settings.
