Bottle Collars
Free templates:
see "Details"
- Description
- Details
- Data info
- Production times
Single-sided colour print (4/0) back blank
Wide range of paper stocks available
250 gsm art print paper glossy
250 gsm Splendorlux (FEDRIGONI) or 250 gsm Magic Chrome printed with UV-dried inks.
250 gsm Chromolux Pearl printed with UV-dried inks and all-over UV-dried varnish finishing.
250 gsm Splendorlux (FEDRIGONI): front high-gloss-coated; white back (writeable). Printed with UV-dried inks
250 gsm offset paper: both sides untreated, to be written
200 µ plastic film: Tear-resistant matt-white film (water- and oil-resistant)
280 gsm chromo-sulfate board: front glossy, back untreated (writable)
300 gsm recycled board (100% recycled paper, "Blue Angel" environment seal): with
1.3 times volume and excellent opacity
300 gsm art print paper matt
400 gsm art print paper matt
Will be shipped die-cut
Resolution at least 300 dpi for an original image size of.
Include a surrounding trim of 2 mm, important information should be at least 4 mm from the edge of the final format size
Fonts must be completely imbedded or converted to curves.
colour mode CMYK, FOGRA51 (PSO coated v3) for coated paper, FOGRA52 (PSO uncoated v3 FOGRA52) for uncoated paper
Maximum colour application of 300%
We will not check for spelling and/or typographical errors.
We will not check for overprint settings.
Transparencies created with CorelDRAW must be reduced.
Comments will be deleted and not printed.
Form field content will be printed.
The production times listed apply – unless otherwise indicated upon receipt of your complete order (including printing data and payment) on working days before 10 pm (CET) .
| Bottle Collar | 5-7 working days |
The delivery time depends on the production and shipping times. Working days are Monday through Friday, NOT Saturday, Sunday and public holidays.

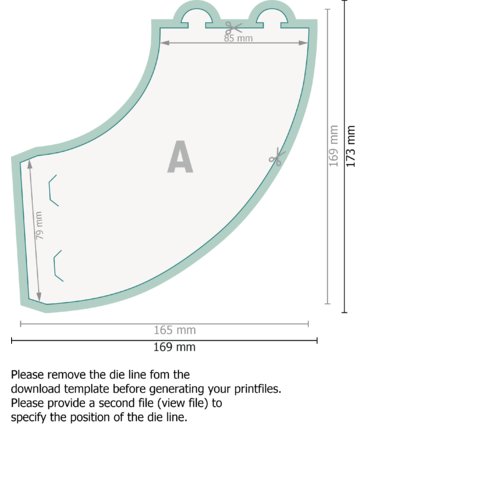

Here you can download the template for your product. With the information in the template you can customise your printing file correctly. Please do not scale the size of graphics because the sizes are binding. You can use the inscribed measurement for check-up. The final printing files cannot contain any outlines or folding lines, because you do not want them to be printed. So please create an extra file for outlines and all the information we need to know.
| File name | Application | File size | |
|---|---|---|---|
Please note: Despite taking great care, we cannot assume any liability for the correctness and completeness of the provided templates. If you spot any errors, please let us know using the contact form.
Illustration data formats:
| Platform independent data format, preferred for print data transfer. Display with Adobe Reader | ||
| AI | Adobe Illustrator, vector-based design program. Can be imported into many layout programs | |
| PSD | Adobe Photoshop, program for professional image editing | |
| INX | Adobe InDesign up to CS3, earlier version of the page layout programs | |
| INDD | Adobe InDesign (current version), page layout program for creating professional print templates | |
| IDML | Adobe InDesign, open interchange format for the page layout program starting at CS4 | |
| ZIP, RAR | Format for compressing data and compressed collection of multiple data | |
| CDR | Corel Draw, vector-based graphic program |
Free templates:
see "Details"
