Stretch fabric display, curved, 500,0 x 230,0 cm
Artwork information Stretch fabric display, curved, 500,0 x 230,0 cm

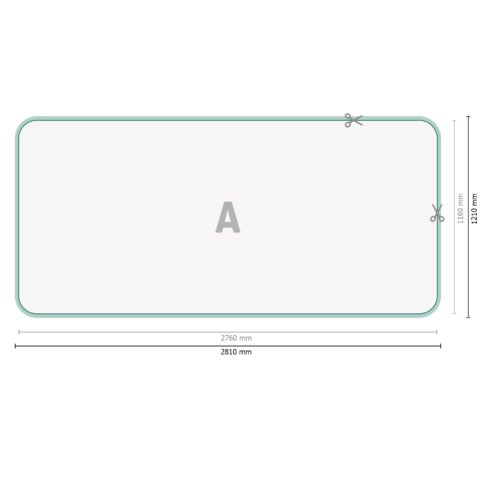

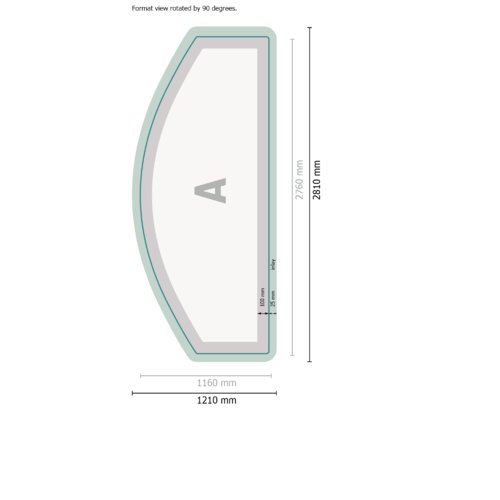

Data format (incl. 25.00 mm inlay): 281.00 x 121.00 cm
Trimmed size: 276.00 x 116.00 cm
System dimensions: 500.00 x 230.00 cm
Resolution at least 150 dpi for an original image size of
You can find more information regarding the trim under the „Details” tab.
Fonts must be completely imbedded or converted to curves.
colour mode CMYK as with FOGRA51 (PSO Coated v3)
Maximum colour application of 300%
We will not check for spelling and/or typographical errors.
We will not check for overprint settings.
Transparencies created with CorelDRAW must be reduced.
Comments will be deleted and not printed.
Form field content will be printed.
Single-sided colour print (4/0) back blank
250 gsm polyester fabric white (fire protection classification)
zipper along short side
lightweight anodised aluminium tubing
Supplied with a sturdy trolley for transportation.
Important note: To submit the printable files when ordering the stretch fabric display in up to 5 m size, the image size has to be reduced by 50 percent. The image resolution must be 300 dpi min.
