Adhesive Binding (short runs), A4
Free templates:
see "Details"
- Description
- Details
- Data info
- Production times
Double-sided colour print (4/4)
Optional also 1/1 colour printing black available
Possible additional options:
Control copy: Non-colour-binding printout for visual inspection of justification (sequence of pages), positioning and aspect of pages
The control copy will be shipped to the specified invoice address.
Colour proof front page: True-colour-proof digital print of the title page in accordance with ISO 12647-2
The colour proof will be shipped to the specified invoice address.
Processing is made in PUR adhesive binding. Here, the individual sheets are glued together with polyurethane glue, which ensures long durability and stability of the spine.
To make it as easy as possible for you and to avoid errors, we perform the imposition (arrangement of the pages on the sheet) for you.

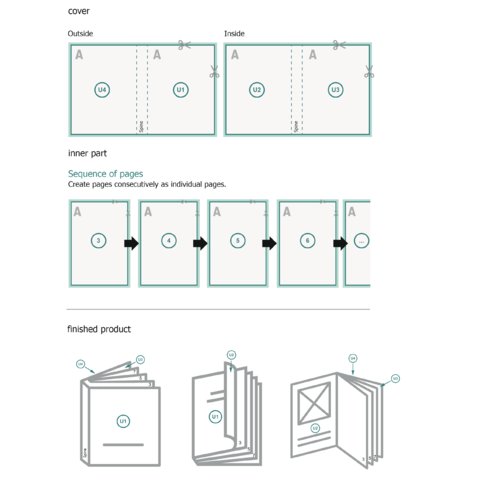

Please create the catalogue cover completely assembled as a double page (exterior + inner) including crown width!
Therefore, the individual pages of the contents (3, 4, 5…) must be created in sequence and may not be imposed in advance (e.g. 150/3, 4/149, etc. is incorrect). You can deliver the individual pages either all together in one PDF file or each page as an individual PDF, whichever is easier for you.
The important thing is: individual pages, no double pages! It should be noted here that almost all layout programs offer the option of a double-page display for layout. However, the pages in such programs are only displayed as double pages and are still single pages after export. You can of course use this option.
Adhesive binding: position depends on reading direction and layout orientation
Portrait
Data format (incl. 2.00 mm bleed): 21.40 x 30.10 cm
Trimmed size (closed): 21.00 x 29.70 cm
In addition to the requirements concerning your print data, please observe the following peculiarities for brochures and catalogues.
Resolution at least 300 dpi for an original image size of.
Include a surrounding trim of 2 mm, important information should be at least 5 mm from the edge of the final format size
Fonts must be completely imbedded or converted to curves.
colour mode CMYK, FOGRA51 (PSO coated v3) for coated paper, FOGRA52 (PSO uncoated v3 FOGRA52) for uncoated paper
Maximum colour application of 300%
We will not check for spelling and/or typographical errors.
We will not check for overprint settings.
Transparencies created with CorelDRAW must be reduced.
Comments will be deleted and not printed.
Form field content will be printed.
Create consecutive single pages in a PDF document
Catalogue cover, completely imposed, allowing for back thickness (number of pages, inner section: 2x paper grammage : 1000 = back width)
The production times listed apply – unless otherwise indicated upon receipt of your complete order (including printing data and payment) on working days before 10 pm (CET) .
| Adhesive Binding (short runs) | 5-6 working days |
The delivery time depends on the production and shipping times. Working days are Monday through Friday, NOT Saturday, Sunday and public holidays.
Here you can download the template for your product. With the information in the template you can customise your printing file correctly. Please do not scale the size of graphics because the sizes are binding. You can use the inscribed measurement for check-up. The final printing files cannot contain any outlines or folding lines, because you do not want them to be printed. So please create an extra file for outlines and all the information we need to know.
| File name | Application | File size | |
|---|---|---|---|
Please note: Despite taking great care, we cannot assume any liability for the correctness and completeness of the provided templates. If you spot any errors, please let us know using the contact form.
Illustration data formats:
| Platform independent data format, preferred for print data transfer. Display with Adobe Reader | ||
| AI | Adobe Illustrator, vector-based design program. Can be imported into many layout programs | |
| PSD | Adobe Photoshop, program for professional image editing | |
| INX | Adobe InDesign up to CS3, earlier version of the page layout programs | |
| INDD | Adobe InDesign (current version), page layout program for creating professional print templates | |
| IDML | Adobe InDesign, open interchange format for the page layout program starting at CS4 | |
| ZIP, RAR | Format for compressing data and compressed collection of multiple data | |
| CDR | Corel Draw, vector-based graphic program | |
| EPS | Vector-based data format. Can be imported into many layout programs |
